Description

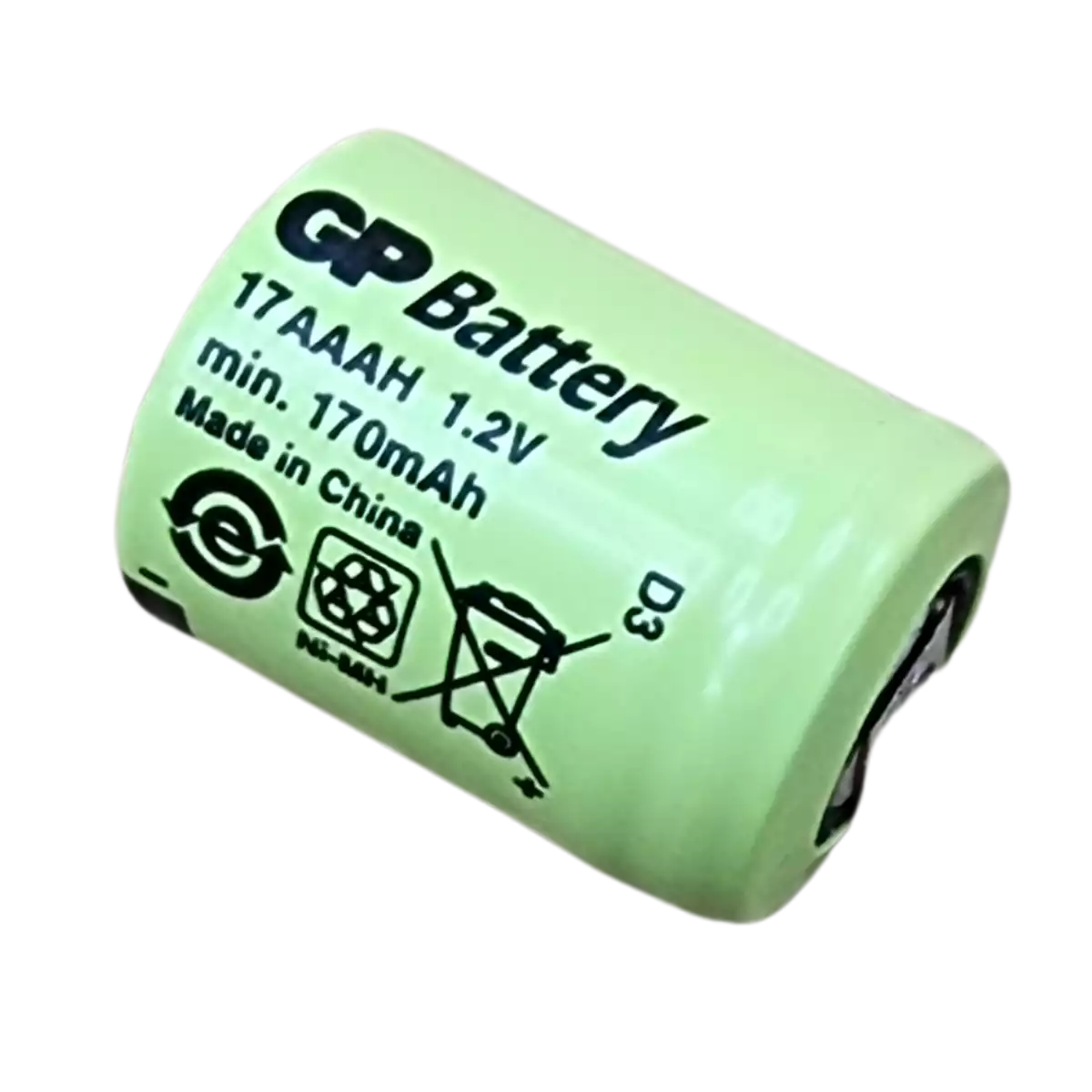

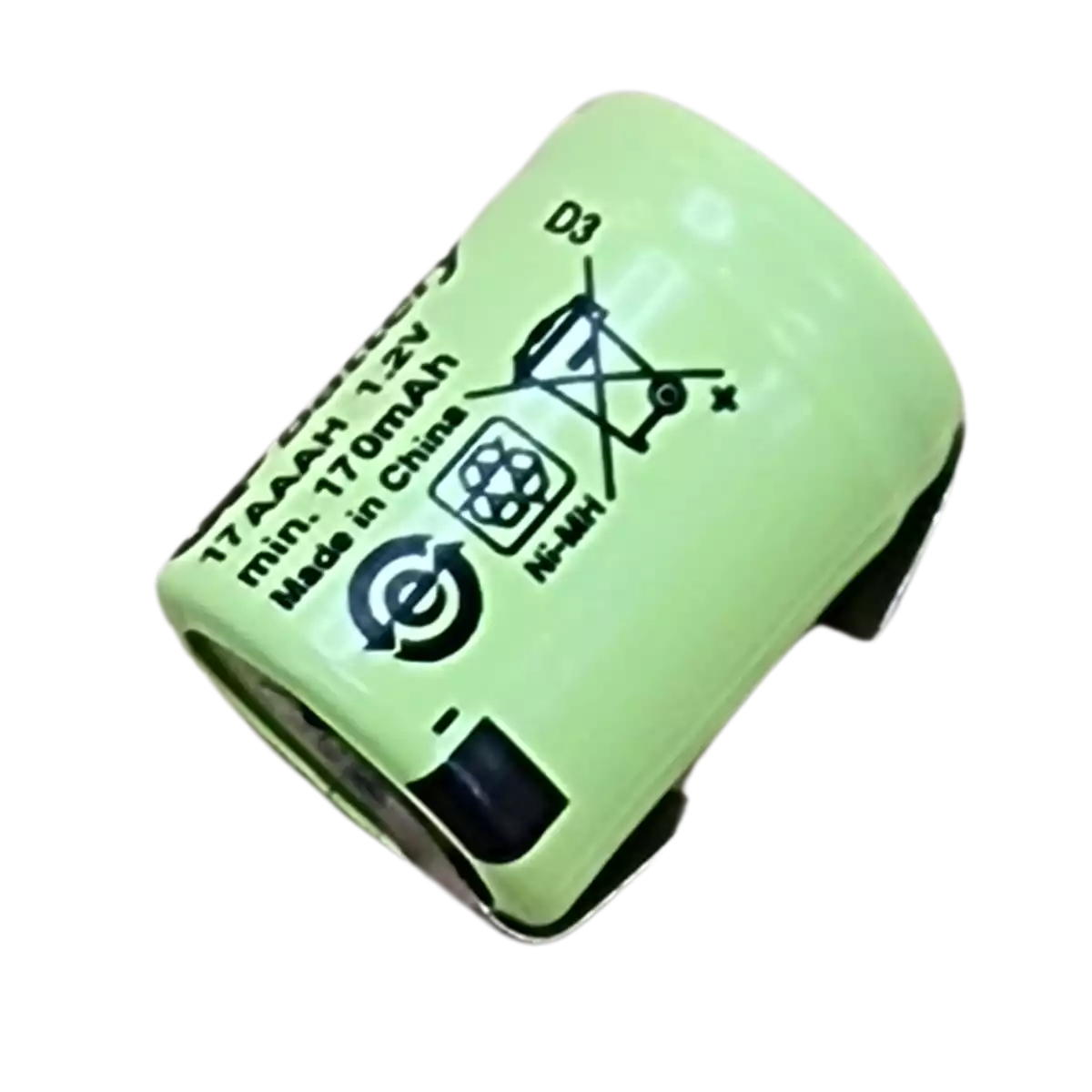

1/3 AAA NiMH 170mAh rechargeable solderable battery
The 1/3 AAA NiMH battery is a compact rechargeable 1.2 V, 170 mAh battery designed for small devices and electronic assemblies requiring solder tabs. This 170mAh NiMH rechargeable battery can replace a used cell when the technology, voltage, dimensions, and terminal type match the original cell. This solderable battery is also a practical solution for creating small custom assemblies.
Compact format for assembly and replacement
This cylindrical cell in 1/3AAA format has commercial dimensions of approximately Ø10 × 15 mm. Depending on the manufacturer, slight variations may exist. For technical reference, the GP17AAAH format is approximately Ø10.4 × 14.1 mm with a nominal capacity of 170 mAh. Before ordering, therefore compare the dimensions of your old rechargeable battery as well as the layout of its metal tabs.
Technical specifications
- Technology: Rechargeable NiMH
- Nominal voltage: 1.2 V
- Capacity: 170 mAh
- Nominal energy: approximately 0.20 Wh
- Format: 1/3 AAA
- Dimensions: approximately Ø10 × 15 mm

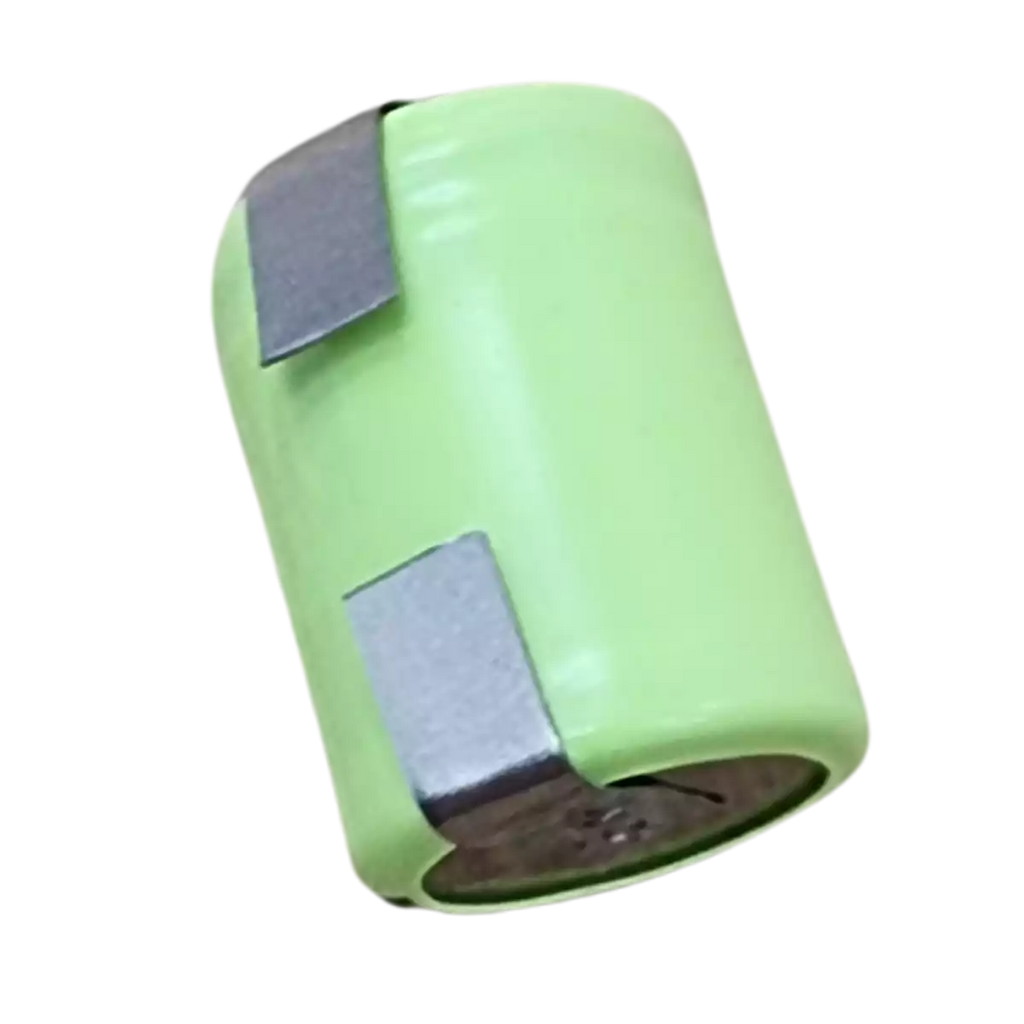

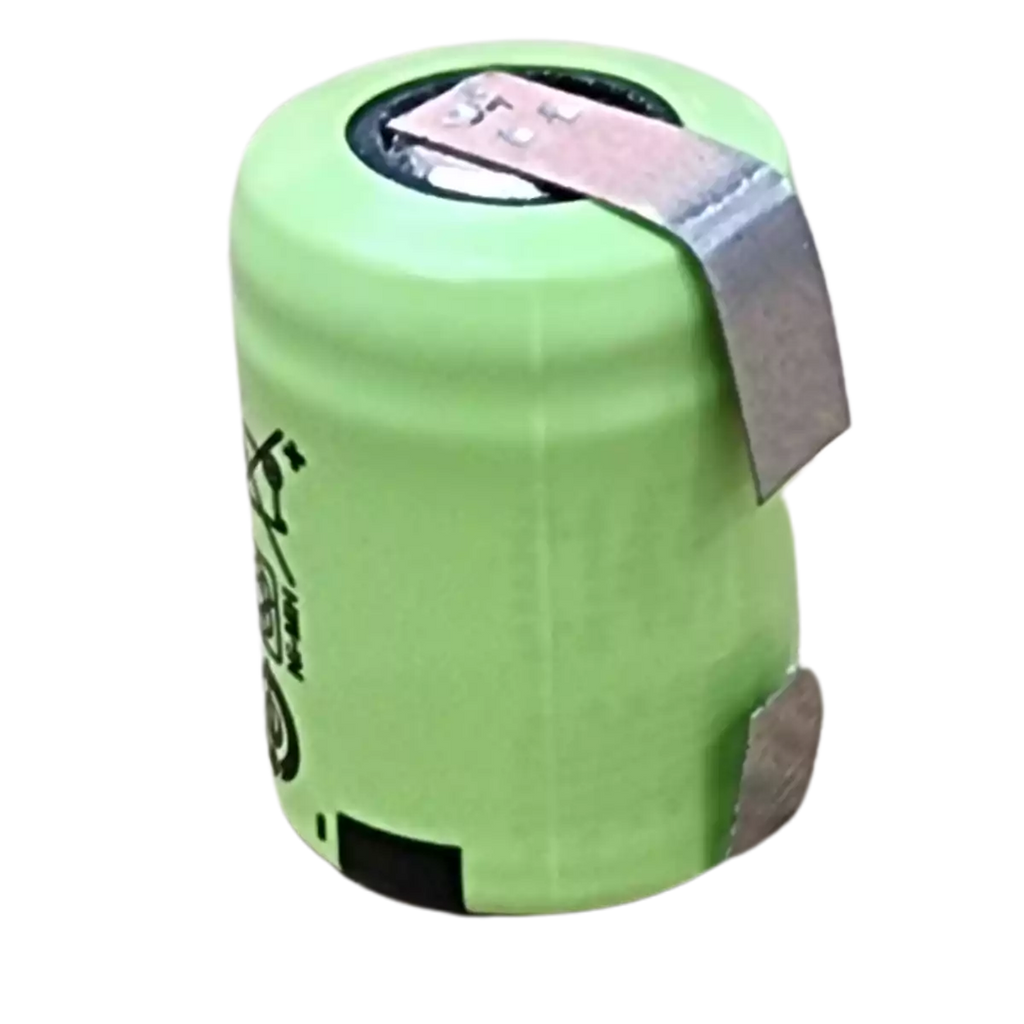

- Terminal: solder tabs
- Packaging: one cell
Common applications
This 170mAh NiMH rechargeable battery is suitable for certain solar lights, small lamps, toys, portable devices, compact electronic equipment, and assembled battery packs. This solderable battery can also be used for repairs or custom manufacturing when a rechargeable cell of the same technology and format is required.
You can also find our selection of NiMH batteries for assembly to discover other formats and capacities suitable for replacement or pack manufacturing.
To view an example of an industrial cell in this format, you can also consult the GP Batteries technical documentation on NiMH rechargeable batteries.
Checks before assembly
Visual similarity is not enough to guarantee compatibility. Always check the 1.2 V voltage, NiMH technology, dimensions, polarity, and tab position. This 170mAh NiMH rechargeable battery must only be used in a device or with a charging system designed for NiMH rechargeable batteries. Lithium-ion or LiFePO4 chargers are not suitable.
Assembly tips
The metal tabs make it easier to connect this solderable battery to an existing circuit or assembly. Avoid heating the cell body directly with the soldering iron. When replacing, reproduce the original assembly and carefully check the polarity before applying power.
Product checked before shipping
This 1/3 AAA NiMH battery is sold individually. New product checked before shipping by Accessoires Énergie. Shipping within 24 to 48 hours from our stock in France and 1-year contractual warranty.
