Description

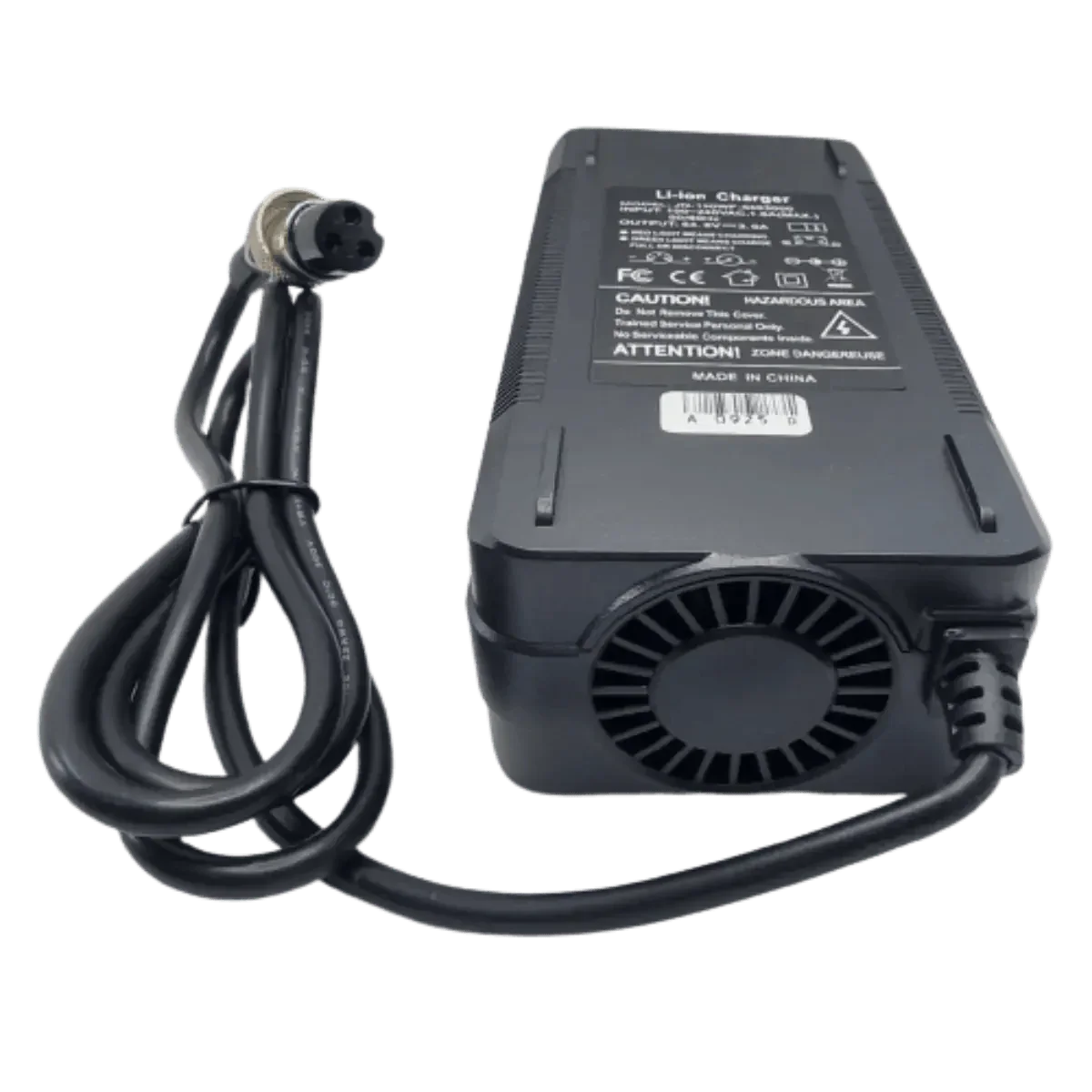

54.6V 3A Charger - ST14 - ST16 - GX14 - RS800+
Electric scooters and bikes, 3-pin female connector
for 48V 13S lithium-ion battery
Specifications:
XLR screw terminal : 3p GX16, 12.44mm diameter, pin 1 = +, pin 3 = -
CAUTION: Pay attention to the plug’s polarity; check before ordering
-100% brand new and high quality, super-strong protection.
-Input: 100-240 VAC, 50/60 Hz
-Output: 54.6 V, 3 A
-Charging Indicator: The red charging light turns green when fully charged
-Safety Protection: OVP/OCP
-Max Power: 163 W
Electric scooters and bikes, 3-pin female connector
for 48V 13S lithium-ion battery
Specifications:
XLR screw terminal : 3p GX16, 12.44mm diameter, pin 1 = +, pin 3 = -
CAUTION: Pay attention to the plug’s polarity; check before ordering
-100% brand new and high quality, super-strong protection.
-Input: 100-240 VAC, 50/60 Hz
-Output: 54.6 V, 3 A
-Charging Indicator: The red charging light turns green when fully charged
-Safety Protection: OVP/OCP
-Max Power: 163 W
-cooling fan
Charger Use and Maintenance:
1. When charging, first connect the battery, then connect the charger to the AC power source
After the battery is fully charged, turn off the charger, then disconnect the battery.
If you disconnect the battery first while charging—especially when
the charging current is high (red indicator light)—you may damage the charger.
2. When the LED turns green, continue charging for 2 to 3 hours.
3. Never leave the battery uncharged for more than 3 months, as deep discharge (voltage too low) can damage the battery.
4. Please use the charger in a dry, temperate location.
5. When not using the charger, disconnect it from the 220V AC power source.
6. Check your battery, as the charger is designed to charge a 36V lithium-ion battery.
Do not use the charger with a LiFePO4 battery, otherwise the charger will become very hot.
Our chargers come with a 1-year warranty.
Charger Use and Maintenance:
1. When charging, first connect the battery, then connect the charger to the AC power source
After the battery is fully charged, turn off the charger, then disconnect the battery.
If you disconnect the battery first while charging—especially when
the charging current is high (red indicator light)—you may damage the charger.
2. When the LED turns green, continue charging for 2 to 3 hours.
3. Never leave the battery uncharged for more than 3 months, as deep discharge (voltage too low) can damage the battery.
4. Please use the charger in a dry, temperate location.
5. When not using the charger, disconnect it from the 220V AC power source.
6. Check your battery, as the charger is designed to charge a 36V lithium-ion battery.
Do not use the charger with a LiFePO4 battery, otherwise the charger will become very hot.
Our chargers come with a 1-year warranty.
