BMS Li-Ion protection board 6S - 22.2v 40A

6S - 22.2V 40A Li-Ion BMS Protection Board: Secure Your Battery

The 6S 22.2V 40A Li-Ion BMS Protection Board is an essential component for anyone using Lithium-Ion batteries in their devices. This battery management system is designed to effectively protect up to 6 cells, ensuring optimum safety during charging and use.

Effective Protection Features: This card provides essential protections, including overcharge, short circuit and overcurrent. This not only optimizes the performance of your batteries, but also extends their lifespan by preventing potential damage.

To get the most out of this board, it is recommended to use a suitable 25.2V charger. Also make sure that the voltage difference between each cell does not exceed 0.05V to ensure optimal operation.

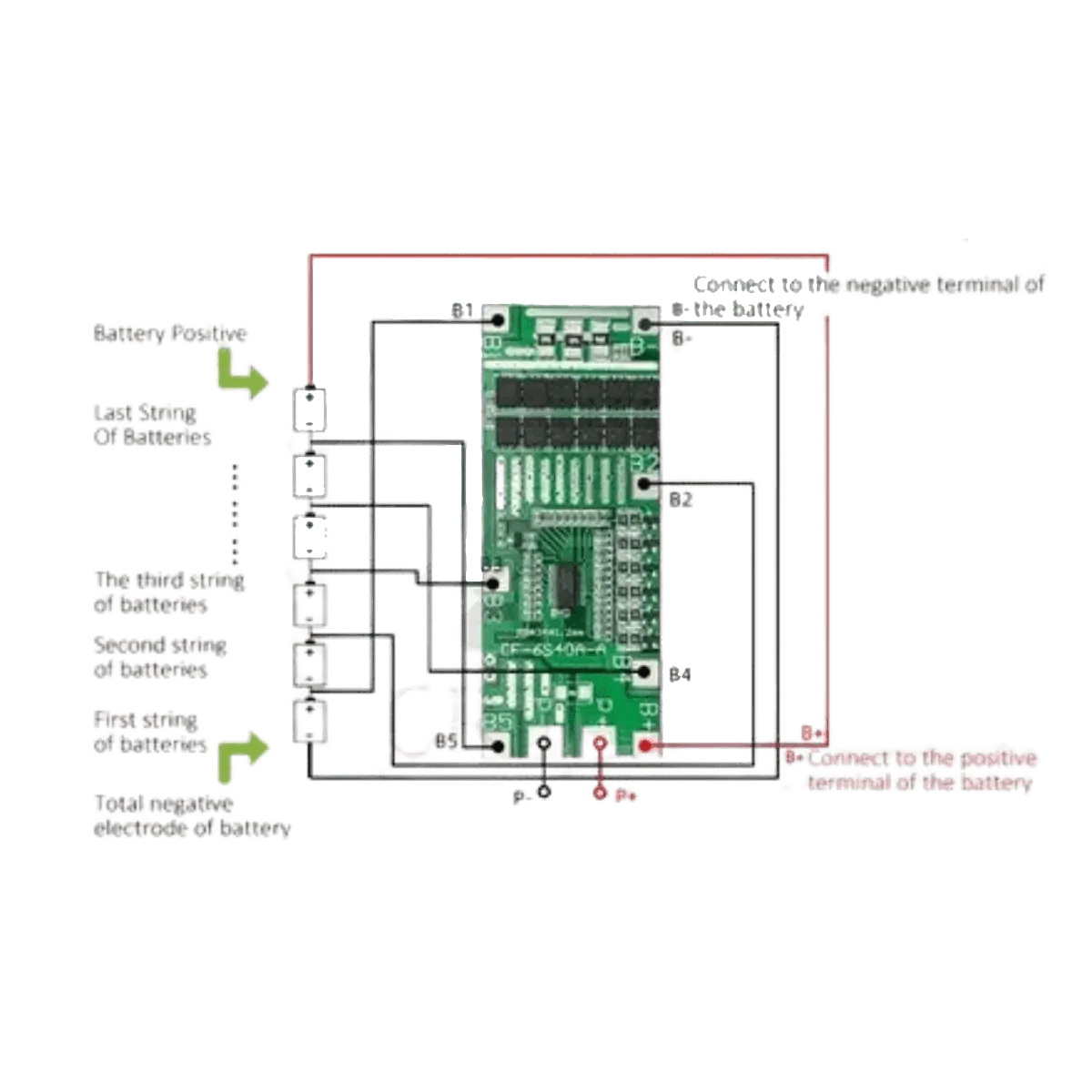

The connection is simple: connect the B+ to the positive and the B- to the negative of the battery. The P+ and P- terminals should be connected to the use and load output respectively.

With compact dimensions of 92 x 34 x 4 mm, this card can be easily integrated into various devices. The maximum operating current is 40A, making it suitable for many applications.

Before installation, check that the battery is compatible. If replacing an old board, make sure that the batteries are working properly. A multimeter can be used to check the battery voltage before installation.

Investing in a BMS Protection Card is a guarantee for the safety and performance of your Lithium-Ion batteries. Protect your equipment and optimize its operation with this reliable product.
